Techno Plast - HDPE Corrugated Pipes:

For Sewer Networks produced under the trade mark name TECHNO LENE OUT

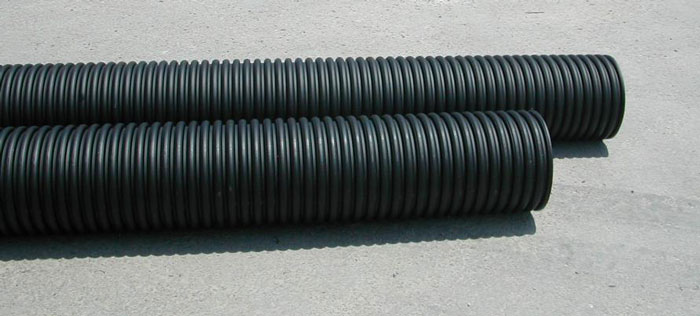

Our pipes are structural double walled pipes made out of Black HDPE material. Manufactured according to EN 13476-3. Sizes available: ID 200mm, 250mm, 300mm & 400mm in both SN4 & SN8.

Sizes ID 200mm , 250mm , 300mm & 400mm are Corrugated structured pipes produced in 12 meters long.

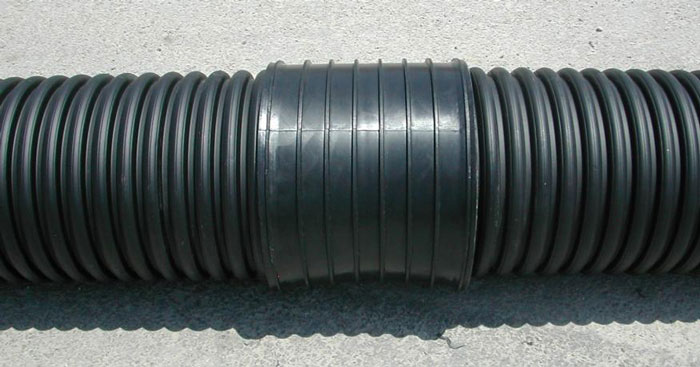

Pipes are joined by using an external Coupler that is structural & injected along with two Gaskets . The Gasket is placed on the pipe between the external profiles.

This system allows cutting the pipe to any length on site & joining it by the external Coupler . We can also, on request , supply an integrated socket with the pipe. The pipes are produced in stiffnesses of 4kn/sqm & 8kn/sqm

Printed on each pipe are the following information:

• TECHNO PLAST
• EN 13476-3
• INSIDE DIAMETER
• STIFFNES
• LOT No
• DATE OF PRODUCTION
• “MADE IN SYRIA”

The Lot No. for a specific pipe will make it traceable & a record at the factory will supply the following information:

• Date Pipe produced
• Name of head of production crew
• Source & type of material used
• Machine used for production with all set parameters
• Results of Laboratory tests that were done on this Lot No

The tests that are regularly performed in our laboratory for each Lot are the following:

• Stiffness test according to ISO 9969
• Flexibility test according to EN 1046
• Socket thickness to comply with EN12666-1 , e2 & e3
• Socket thickness to comply with 7.2.5.3 of EN13476-3
• Thermal Stability, OIT according to ISO 10830
• Gasket test according to EN 681
• Tightness test for a leak proof joint

Accessories:

FITTINGS

Tees, Elbows & Flanges are fabricated for all sizes

HOUSE CONNECTIONS

A special fitting is available to connect the house sewer to the main line.
