Techno THERM - TECHNOGREEN:

Reliable and advanced system:

• For hot and cold water
• For heating and air conditioning equipment
• For compressed air pressures
• For irrigation of networking systems in Greenhouses & Gardens
• For distribution of liquid foods
• For industrial applications
• For laboratory drainage applications

TECHNOGREEN:

With harvested work contributed over a long number of years, TECHNOGREEN has successfully emerged with the formidable ideal solution to best meet the most advance modern installation requirements for the supply of both hot and cold water.

TECHNOGREEN has successfully achieved the international standardization organization status ISO 9001.

The innovative sizing criteria adopted by TECHNOGREEN for pipes and fittings fully satisfy the most recent information acquired for long-term aging resistance thus prolonging a GURANTEED minimum operating life of 50 years.

With pressures ranging from 20Bar for cold water and hot water high temperatures withstanding 95ºC for PN20, TECHNOGREEN proves to be the ultimate tolerant solution against all conventional water supply systems.

Raw Material:

• The clearly eminent pipes and fittings made by TECHNOGREEN are technically sourced out from the most advance high quality raw material made possible to date. TECHNOGREEN is thus prepared from PP-RANDOM CO-POLYMER TYPE 3. A superior polypropylene, NON-TOXIC, raw material that denotes a high molecular weight polymer, with an excellent tolerance capability to withstand mechanical and time elapse strains. It is also an outstanding material that can be used for the flow of high temperature liquids as well as its exceptional leniency to cope with low temperatures dropping to below 0ºC!
• The raw material specifications correspond with THE FEDERAL GERMAN HEALTH OFFICE.
• It has also been inspected by THE GERMAN INTITUTE for drinking water, and has obtained the DVGW-W44 certificate.
• It has also obtained the international standardization ISO-1873-1.
• Attained the British safety certificate standard for drinking water BS6920.
• TECHNOGREEN Pipe and Fitting are mad according to DIN 8077 and 8078
• TECHNOGREEN Pipes also attained The German Certificate SKZ

Specifications and general characteristics:

• Withstand temperatures reaching 95ºC, and 20Bar pressures.
• No chance for leakages, and a definite minimum operating life of 50 years.
• Safe for the supply of drinking water due to the NON-TOXIC raw material used that is health nourishing and approved according to international standards.
• A first-rate resistant over 300 known chemical compositions which make TECHNOGREEN pipes and fitting exception for industrial and laboratory supply systems.

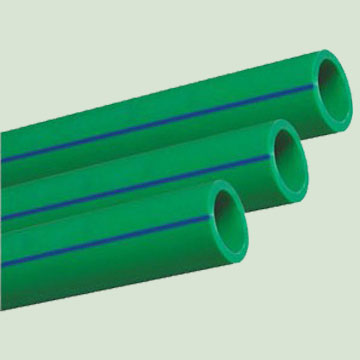

• Easy to fit due to the clearly marked equal lines visible on the outer surface of the pipes and fittings for perfect precision alignment.
• Thanks to TECHNOGREEN's unique connecting technique, welding at+200ºC of pipes and fittings is accomplished and ready to employ in just SECONDS!
• Easy to handle and transport due to its light weight.
• All TECHNOGREEN copper fitting are insulated internally with same raw material to ensure No direct contact between the copper and water.
• The pipe's extremely smooth internal surface assures easy SOUNDPROOF friction-free flow of water WITHOUT LEAVING ANY RESIDUE, SEDIMENT, OR CRUST FORMS ON THE INSIDE.
• Extremely durable and is resistant to all kinds of corrosion, rust, and acids.

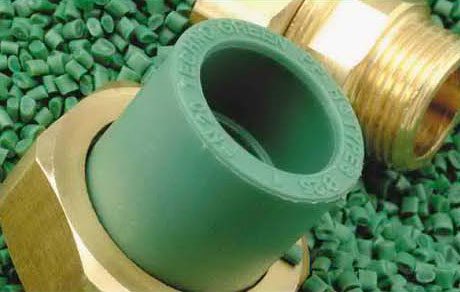

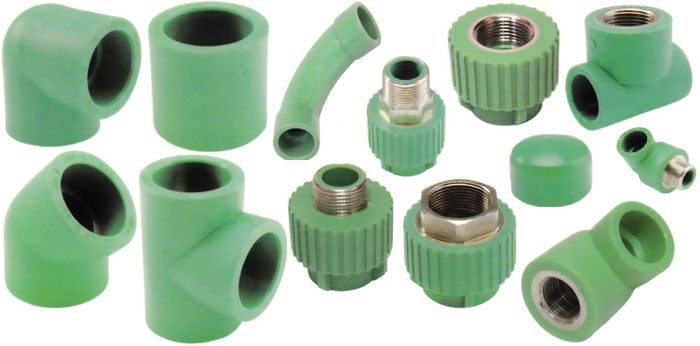

• The fittings with metallic inserts are exceedingly reliable and are machine tooled made, then chrome plated to give the perfect durability and perfect pressure sealing.
• Does not conduct electricity or heat thus preserving the natural cool water temperature on the inside.
