Techno COR - Manholes:

Manholes Manufactured according to DIN 19537.
The Manholes are tailor made to fit the required heights & the Inlets & outlets sewer pipe .
The Manhole can accommodate the different sizes of the pipe.

The Manhole is 1000mm inner diameter with a Solid Shell of 34mm.

The bottom floor plate is 20mm thick.

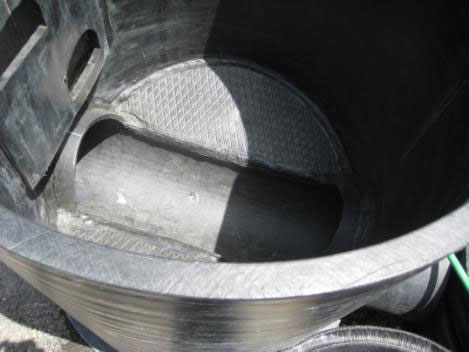

The manhole has a benching water way with a platform for the inspector to stand with an IN & OUT sockets to connect the incoming pipes & the outgoing pipes with an open inner water path.

A PE ladder is welded to the shell to provide a safe access to the inspector to descend to the platform.

The Manholes are tailor made to fit the required heights & the Inlets & outlets pipe.

The Manhole can accommodate the different sizes of the pipe. For sizes above ID800mm pipes the design of the Inlet & Outlet will be tangential to the Manhole.
