Techno COR - HDPE Spiral Pipes:

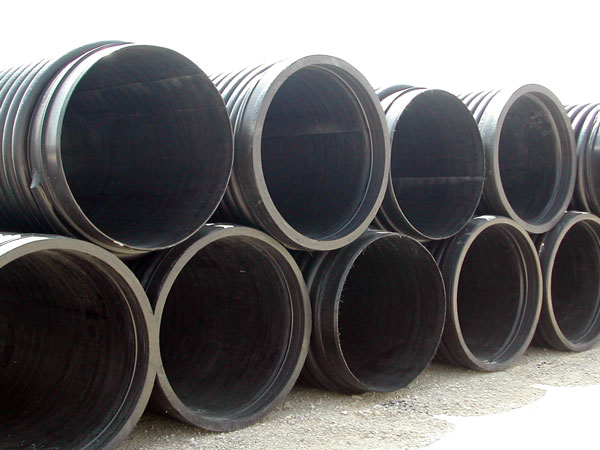

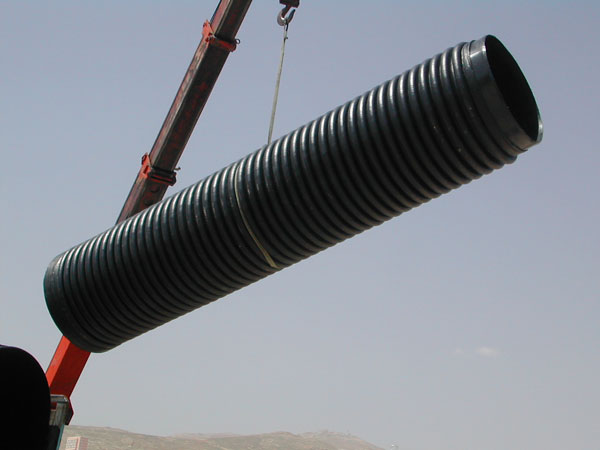

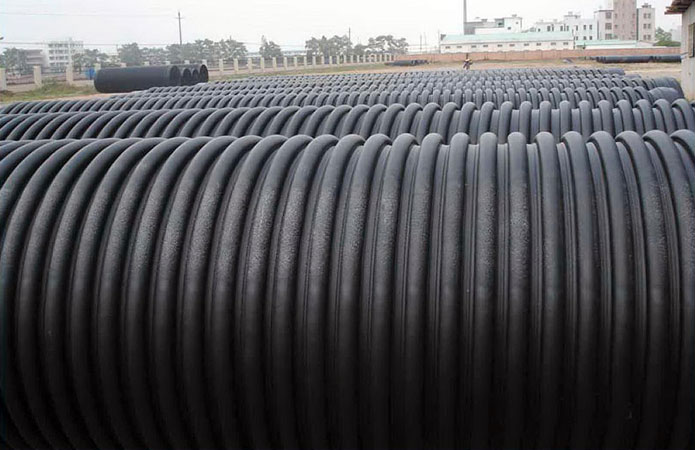

For Sewer Networks produced under the trade mark name TECHNO LENE OUT. Our Pipes are Helical, spirally structured, pipes that are produced in 6 meters length with the Socket & Spigot integrated with the pipe made out of Black HDPE material.

Manufactured according to EN 13476-3.
Sizes available:
ID 500mm, 600mm, 700mm, 800mm, 900mm, 1000mm, 1100mm,1200mm, 1400mm, 1500mm, 1600mm & 2000mm  in both SN4 & SN8.

To join the pipes the Spigot end of the pipe is pushed into the Socket end where the Gasket is placed.

The pipes are produced in Stiffnesses of 4kn/sqm & 8kn/sqm.

Printed on each pipe are the following information :

• TECHNO COR
• EN 13476-3
• INSIDE DIAMETER
• STIFFNES
• LOT No.
• DATE OF PRODUCTION
• “MADE IN SYRIA”

The Lot No. for a specific pipe will make it traceable & a record at the factory will supply the following information :

• Date Pipe produced
• Name of head of production crew
• Source & type of material used
• Machine used for production with all set parameters
• Results of Laboratory tests that were done on this Lot No

The tests that are regularly performed in our laboratory for each Lot are the following:

• Stiffness test according to ISO9969
• Flexibility test according to EN 1046
• Socket thickness to comply with EN12666-1 , e2 & e3
• Socket thickness to comply with 7.2.5.3 of EN13476-3
• Thermal Stability, OIT according to ISO 10830
• Gasket test according to EN 681
• Tightness test for a leak proof joint
